EAI 680 Analog Computer

Our EAI 680 has been part of a hybrid system; unfortunately the digital part has not survived. Nevertheless the 680 is a complete analog system equipped with

• 120 analog modules including integrators, summer/amplifiers, limiters, function generators, multipliers, comparators and a/d convertors. These units are accessible through the removable patch panel (right).
• A control & logic panel (upper part of the patch panel) containing various gates, clocks, pulse generators, relays and bcd counters.
• 100 servo-controllable coefficient potentiometers, plus a number of manually adjustable units on the front panel (left).
• A keyboard for entering coefficients and for general control.
• Lighted pushbuttons for reading and defining the state of the logical units.
• A digital voltmeter with a large decimal display (bottom left).

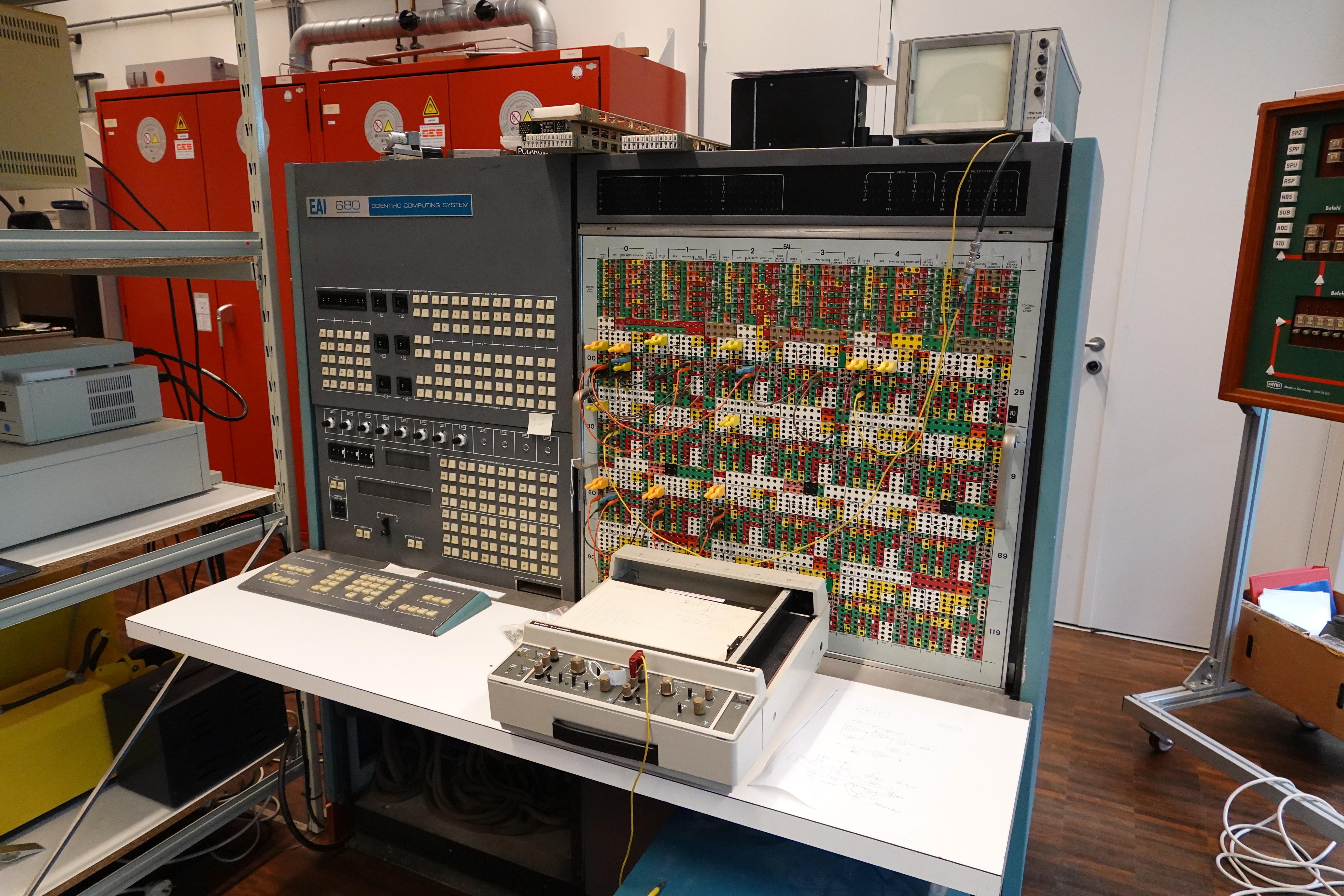

The results of the computations can be displayed on a plotter or on a large screen oscilloscope (not shown; we don't have the original EAI units). Our 680 machine, dating from 1968, is fully functional. The picture below shows the machine while solving the differential equation of a damped pendulum.
